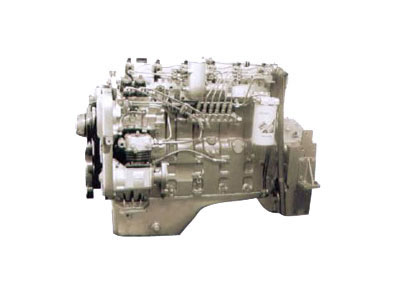

The Euro III electronically controlled diesel engine is a volume production of shanghai Diesel Engine Co., Ltd., which uses the mature D114 diesel engine as the manufacturing basis and combines renovations with mature technologies in Chinese, Japanese and American markets, and key components of which are all international famous brand products.
The power coverage: 150~336 PS and the max. torque: 1350Nm
Sufficient spare parts (interchange- Eable with Euro Ⅱproduct) and Professional Euro Ⅲ service.
The specific fuel consumptionPer 100 km run is 5% ~ 10% down against the Euro Ⅱ product. The specification of the fuelused conforms to that available in China.
Euro Ⅲ emission without black smoke.
The engine noise is lower than 98 dB(A), and complete busnoise is under 82 bB(A)
Mature product, mature market and mature technology createhigher reliability.
Application to truck markets.
|Type||DI, In-line,6-cylinder, Four stroke|
|Aspiration||Turbocharged Intercooled TCI|
|Rated Power/Rated Speed||kW/r/min||170/2200||184/2200||192/2200||206/2200|
|Cold Start||Without Aid)
Smooth start within 15s at -15℃
Smooth start within 15s at -40℃
|Fuel System||Denso HPO CR System|
|Overall Dimension||mm||1363(Length)×890(Width) ×982(Height)|
