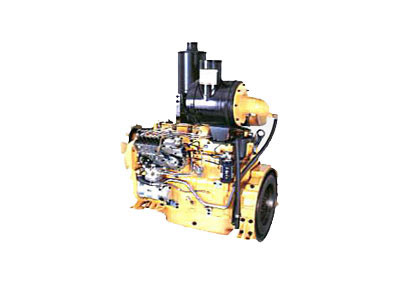

4114 Diesel Engine developed on the basis of 6114 Diesel Engine expands the power coverage of 114 Serial Diesel Engine. Advanced in design and compact in structure, it is an ideal power for medium & light engineering machinery.
With a maximum rated power of 147kW and a coefficient of torque reserve as high as 1.20, 4114 Diesel Engine fills up a gap in the power of domestic similar vertical quadruple cylinder machine.
Low Vibration and Noise
The system, optimally equipped with the vibration isolation device, can effectively reduce overall vibration noise.
4114 Diesel Engine is low in use cost with a minimum fuel consumption rate of 198g/kW.h.
|Bore* Stroke (mm)||114×130|
|Rated Power (kW)||90||100||95||92||105|
|Rated Speed (t/min)||1800||2400||2050||2200||2100|
|Minimum Fuel Consumption (g/kW.h)||205|
|Rate of Torque Reserve||>15%|
6114 diesel engine, developed in cooperation with AVL Company on the basis of the features of Chinese oil products and customers' operating features, is the newest and the most technically advanced engine among domestic mature engines and one of the main powers of domestic engineering machinery with a social possession amount of over 120,000.
High Design Integration
6114 diesel engine adopts a design mode of multifunctional integration for overall structure, and is concise in structure with the quantity of its basic parts and components 25% less than common diesel engines. Naturally reducing potential faults, besides, it is small and light.
6114 diesel engine is more fuel-saving under the same use condition, and the core technology is exclusive to us.
Extensive Power Coverage
6114 diesel engine has a designed maximum power of 350hp with its power covering the majority of auxiliary engineering machinery areas.
|Bore × Stroke (mm)||114×135|
|Rated Power (kW)||160||140||105||125|
|Rated Speed (t/min)||2200||2200||1900||2200|
|Minimum Fuel Consumption (g/kW.h)||200|
|Rate of Torque Reserve||≥20%||≥10%||≥25%||≥10%|
