D9 Diesel Engine

D9 Diesel Engine

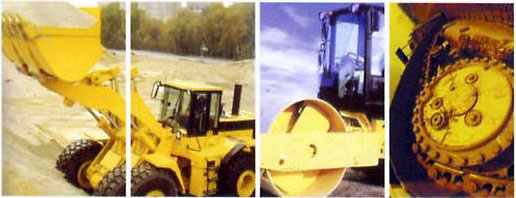

On the basis of 6114 Diesel Engine, redesign the main components in an optimized way and follow the advantages of 6114 Diesel Engine, D9 Diesel Engine, with a larger horsepower and stronger digging power, is an ideal auxiliary power of medium & heavy 50 Shovel Loaders.
Good Reliability
With a designed horsepower of 400hp,an actual application power of 260-350hp and large safety allowance, the engine is more reliable.
Good Economy
D9 Diesel Engine has a minimum fuel consumption of 195g/kW.h. Additionally, it also adopts piston oil cooling technology and alloy bainite cylinder liner, has a lower consumption of engine oil and is economical in use.

Main Technical Parameters of D9 Diesel Engine
Representative Model D9-220
Type In-line, Four-Stroke, Water-Cooling, Direct-Injection
Fuel System Mechanical in-line Pump, Electric-Control High-Pressure Common-Rail
Bore × Stroke (mm) 114×144
Rated Power (kW) 160
Rated Speed (t/min) 2200
Fuel Consumption Rate@ Rated Condition (g/kW.h) 215
Minimum Fuel Consumption Rate @ Full-Load (g/kW.h) ≤195
Noise (dB(A)) ≤98
Smoke (FSN) ≤2.0
Overhaul Period ≥8000h
